Description

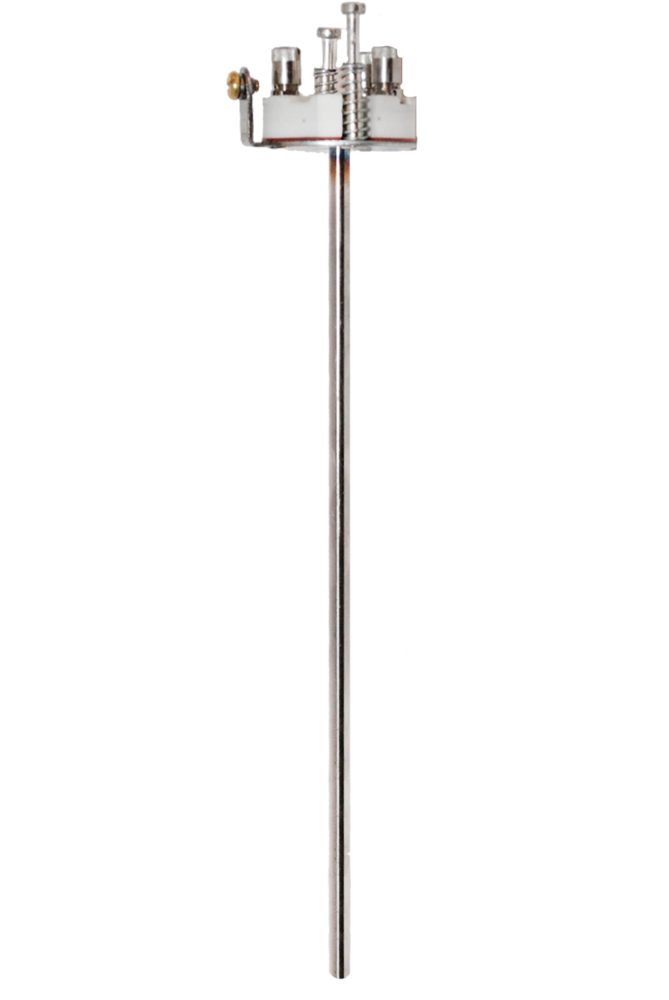

Mineral insulated metal sheathed insert is used as a replaceable element of temperature sensors. Insert design enables its installation in the connection head and pressing insert tip to the bottom of the sensor thermowell.
Files
Catalog card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: export@limathermsensor.pl
General
Compatible devices
Additional accessories
Contact form
Temperatura range
- -200÷600ºC RTD
- -40÷700ºC J
- -40÷1200ºC K, N
- -40÷350ºC T
Specification
- sensing element: Pt100/Pt500/Pt1000 resistor or J, K, N, T thermocouple
- for intrinsically safe (Exi) temperature sensors produced by Limatherm Sensor acc. to ATEX
- sheath material: acid-resistant steel 1.4541
Cooperating devices
Temperature sensors can cooperate with the devices registering parameters of the controlled process.
| Temperature Indicators | Controllers | Recorders |
|
|
|
|
For details see: “indicators”, “controllers”, “data loggers”
Additional accessories
Some applications require the use of additional accessories suitable for their individual requirements.
| Transmitters heads |
|
|
For details see: “transmitters”
