Description

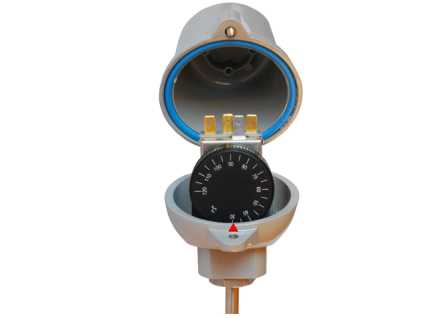

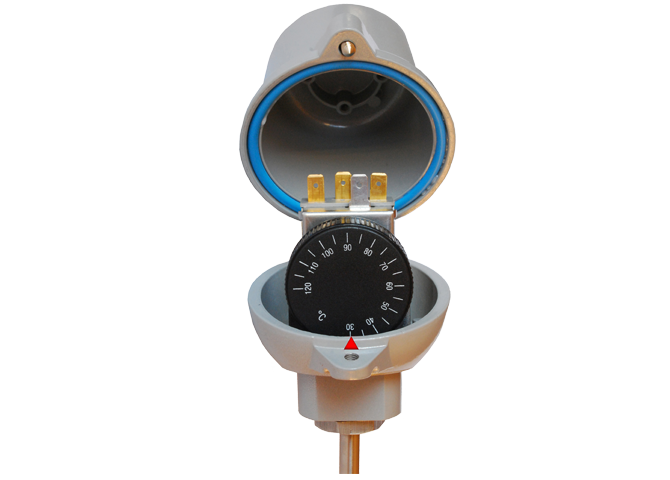

TMS thermostats are used in automation as a simple process controllers or direct action safety systems. Stainless steel thermowell and aluminum connection head, provide a durable and reliable operation under difficult conditions. Thermostat switch contacts allow for switching on loads up to 16 A.
Files
Catalogue card
Contact with a consultant
Telephone: +48 (18) 330 10 06
Fax: +48 (18) 330 10 04
E-mail: export@limathermsensor.pl
General
Contact form
Characteristic
-
universal thermostat with aluminum connection head and
stainless steel thermowell - connection head: DAAW1
- contacts load NO (NC): 16(5) A 250 V, 10(1) A 400 V
- connectors: flat plug 6,3x0,8 mm
Specification
- diameter [mm]: ø8
- material: stainless steel 1.4541
- min. immersion length [mm]: 150
