Description

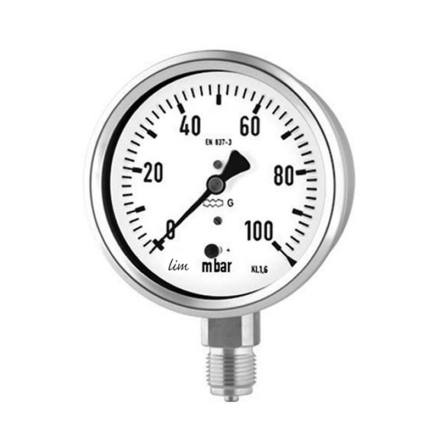

Manometer designed for measuring pressure of low values of gaseous media. Made entirely of stainless steel or with elements in contact with the medium made of copper alloys. Possibility of filling the housing with glycerine or silicone oil to dampen vibrations from the installation. Standard accuracy class is 1.6% with a permissible overload of 110%.
Files
Specification
Measuring Range
- 0÷2.5 mbar to 0÷600 mbar
Characteristics
- capsule pressure gauge for measuring low gas pressure in industrial applications
- window: safety glass
- rear or radial version
Technical Data
- parts in contact with the medium: brass, stainless steel
- housing: stainless steel
- zero adjustment on the gauge dial
- process connection: M20x1.5; M12x1.5; G½; G¼ or others
- housing diameter: 63, 80, 100, 160 mm
